Update 11: Balance of Sheetmetal - Trial Fit

By Frank Colgoni

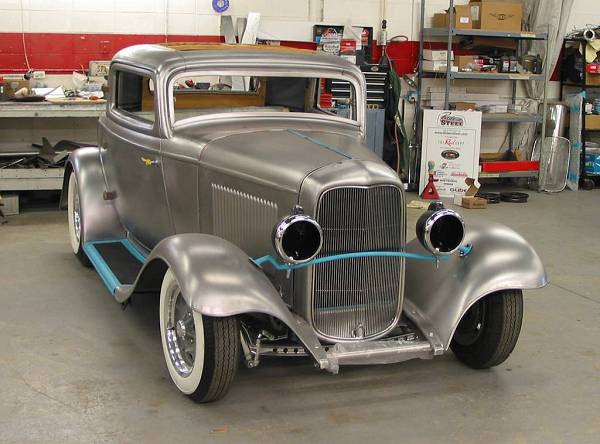

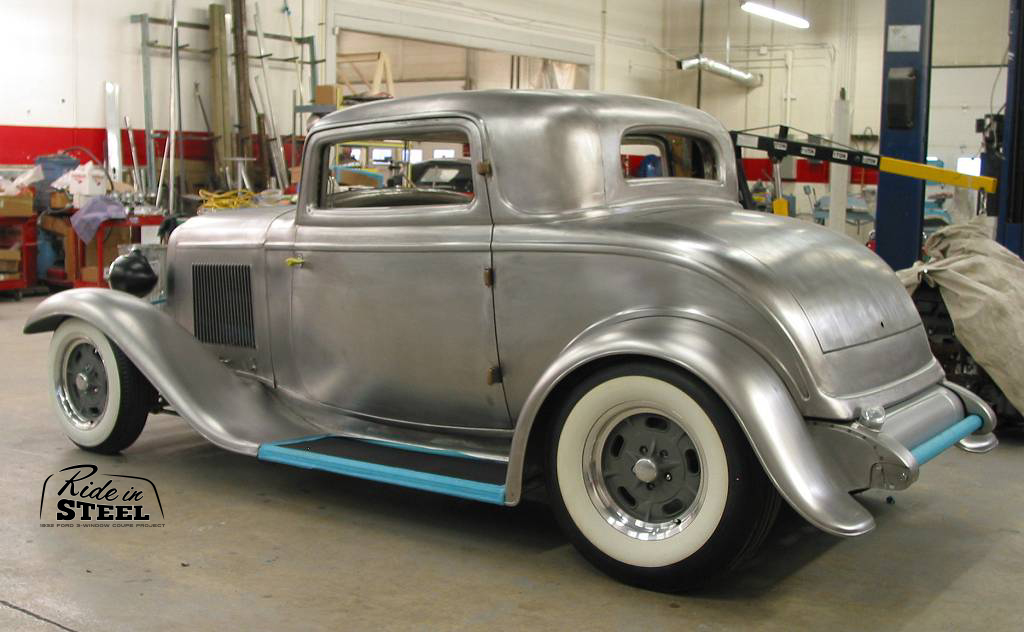

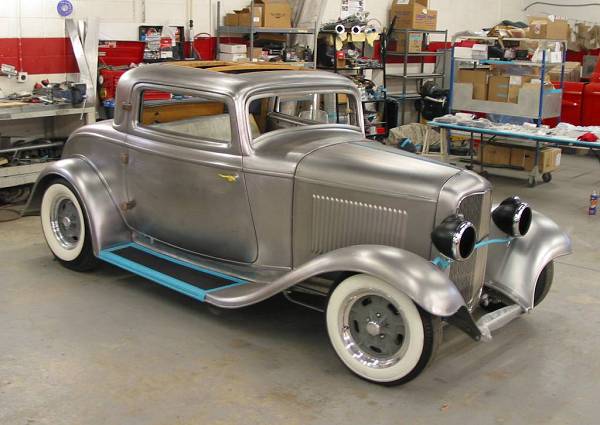

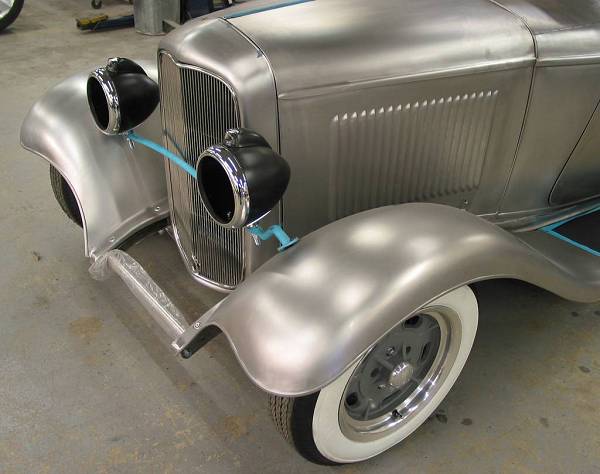

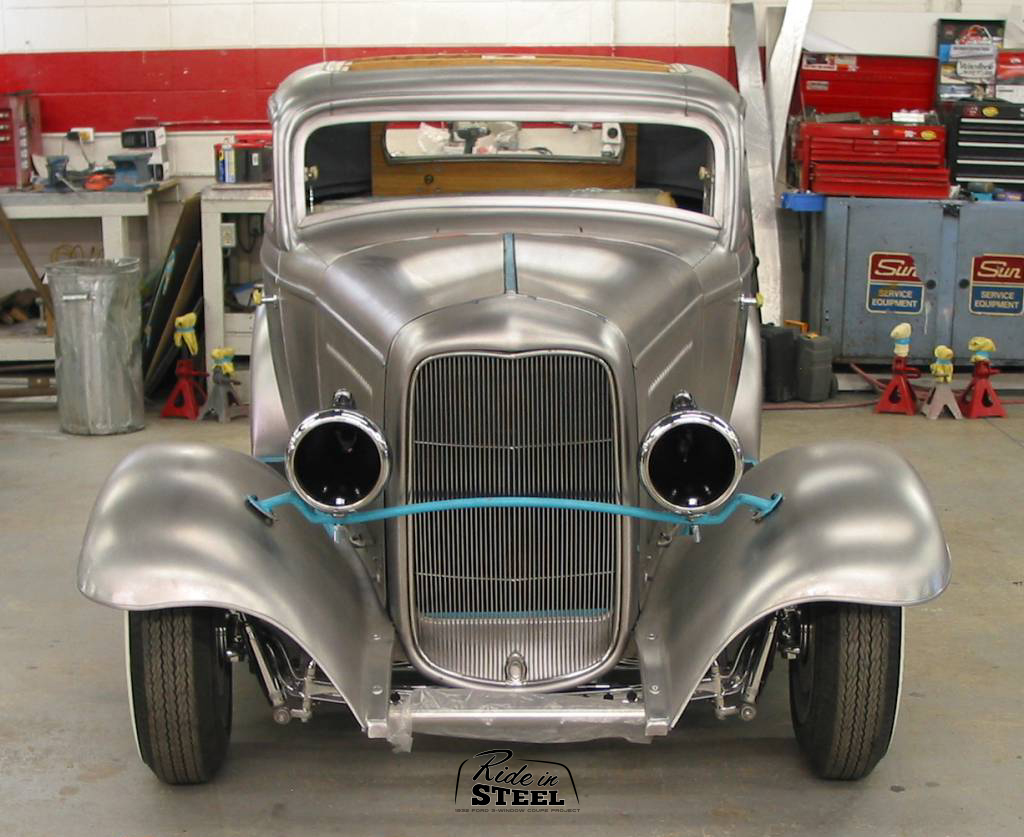

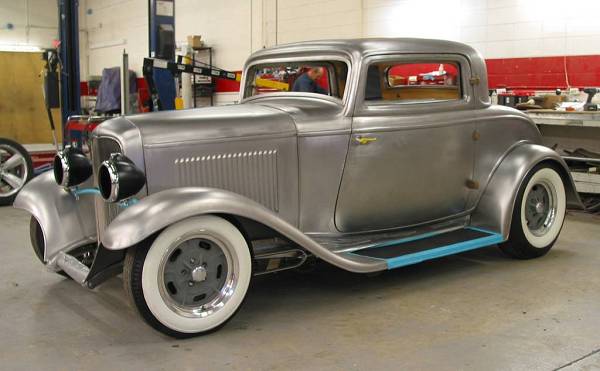

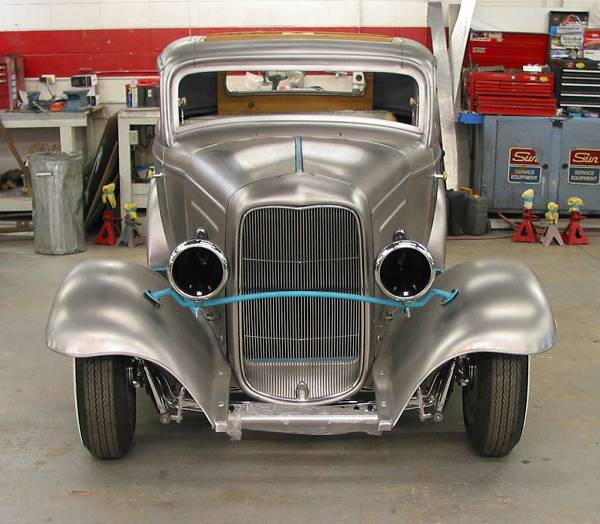

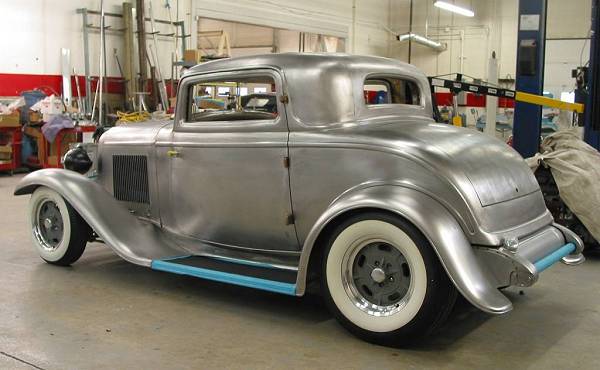

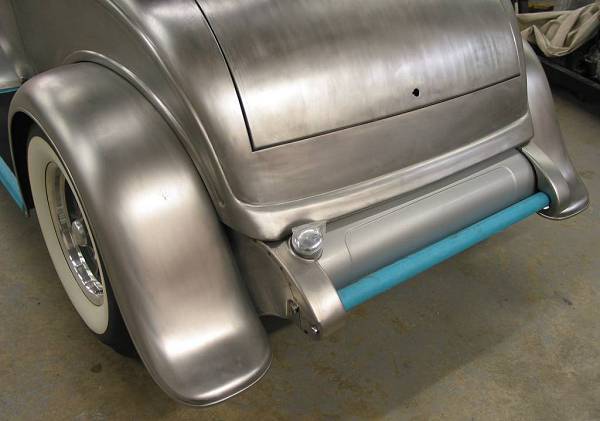

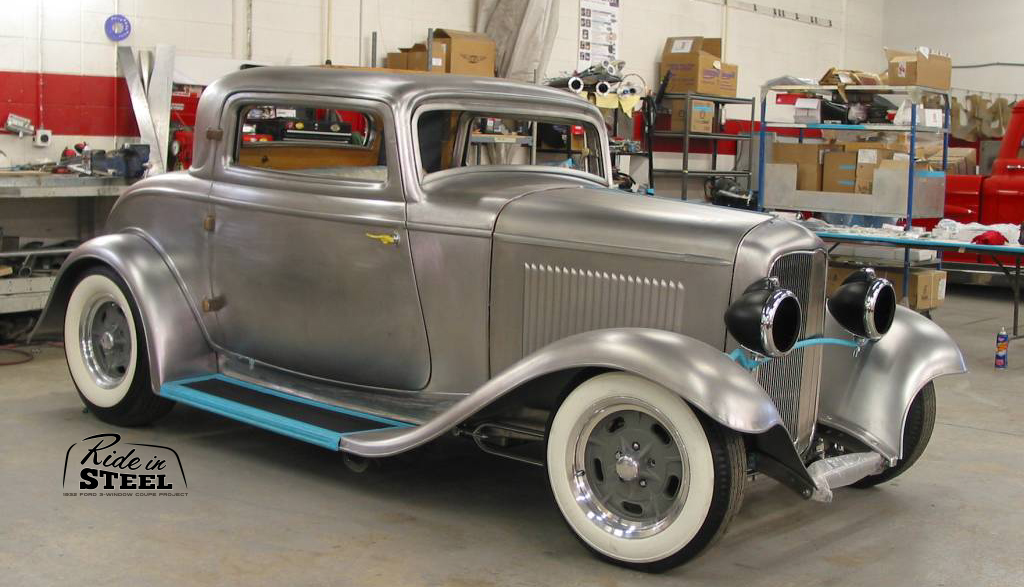

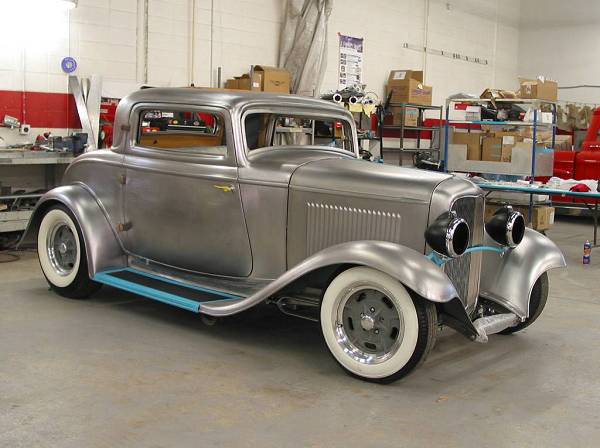

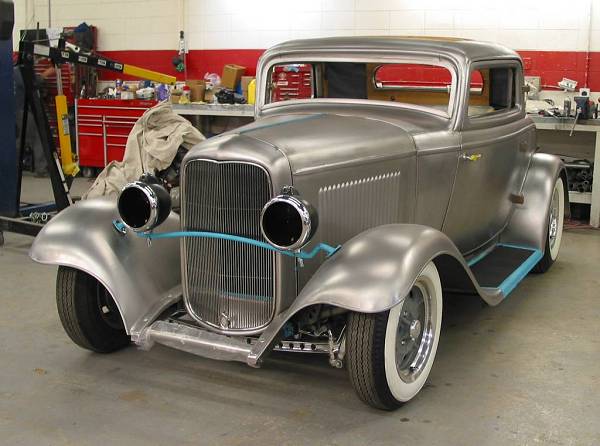

What follows in this update is a series of photos of the project coupe with most of its exterior sheetmetal in place (except the splash apron).

All of the following items were acquired directly from Brookville Roadster:
- Front fenders (& fender braces)
- Rear fenders
- Rubber-covered running boards
- 4-piece hood with stock louvers
- Radiator shell
- Radiator shell insert (Dale's)
- Rear frame horn covers
- splash apron
- Gas tank (larger capacity)

While it may appear in the photos that things are well secured, The Rod Shop used only enough fasteners and clamps for this mockup so that a determination could be made of what sort of "tweaking" would be required for final fitment. Overall, things went very well in this intital mockup.

Note: The wheels and tires are for mockup only and not what we will be using.
